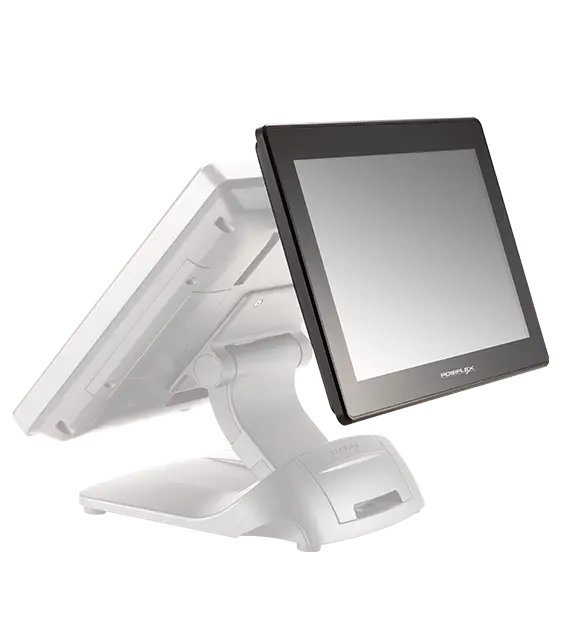

POSIFLEX Monitor LM-3014E 14" LCD 2nd monitor
(LM-3014E)
LM-3014E
- Specification
Display LM-3014E
LCD 14" TFT LCD
- Resolution 1366 x 768
- Active Area 309.399 (H) x 173.952 (V)
- Pixel Pitch 0.2265 (H) x 0.2265 (V)
- Pixel Arrangement RGB Vertical Stripe
- Viewing Angle 15/35/45/45 degree (U/D/L/R)
- Contrast Ratio 600:1
- Response Time 3 ms (Raising)/5 ms (Falling)
- Brightness 220 nits
- Interface VGA
- Power Supply 12V from Posiflex terminal VGA port
Support
- System Supported XT Series
