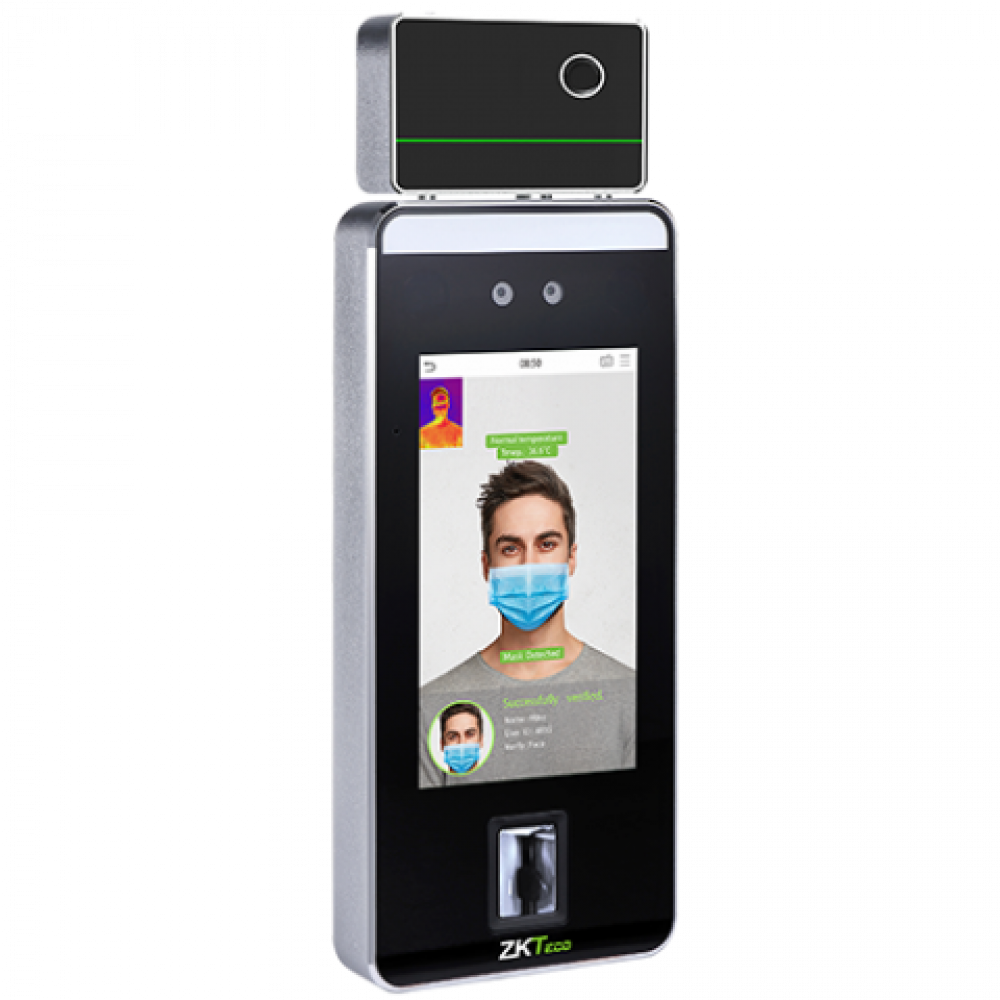

(Time Attendance & Access control machine (SPEEDFACE-V5L[TI]

SPEEDFACE-V5L[TI]

- Display 5"@ ISP Color LCD Screen (720*1280)
-  Camera WDR Low Light Camera @ 2MP
- Operation System Linux
- Hardware CPU: 1.GHz Dual Core RAM: 1GB; ROM: 8GB Supplement Light: Yes Virtual Keypad: 12 Keys Fingerprint Sensor: Z-ID
- Authentication Method Face / Fingerprint / Palm (Customized) / Card / Password (Virtual Keypad)
- Fingerprint Capacity 6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)
- Face Capacity 6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)
 - Palm Template Capacity (Customized) 3,000 (1:N) (Standard) / 3,000 (1:1)
- Card Capacity 10,000 (1:N) (Optional) / 10,000 (1:1)
- Transaction Capacity 200,000 (1:N) (Optional for Capacity Expansion)
- Biometric Verification Speed less than 0.3 sec (Fingerprint) less than 1 sec (Facial Recognition) less than 0.35 Sec (Palm)
 - Touchless Biometric Recognition Distance 1cm to 100cm (Facial Recognition) Up to 50cm(Palm)
- False Acceptance Rate (FAR) % FAR ≤ 0.01% ( Visible Light Facial Recognition) FAR ≤ 0.0001% ( Fingerprint ; ZKFingerprint V10.0) FAR ≤ 0.05% (ZKPalm V12.0)
-  False Rejection Rate (FRR) % FRR ≤ 0.02% ( Visible Light Facial Recognition) FRR ≤ 0.01% ( Fingerprint : ZKFingerprint V10.0) FRR ≤ 1.8% ( ZKPalm V12.0)
- Biometric Algorithm ZKFace 3.5 ZKPalm V12.0 (Customized) ZKFingerprint V10.0
- Card Type ID Card@125 kHz (Optional) IC Card@13.56 MHz (Optional) CEPAS(Optional)
- QR Code Dynamic or Static QR codes on the ZKBioSecurity mobile application. QR code, PDF417, Data Matrix, MicroPDF417 and Aztec scanning in third-party development projects(Support QR500/600 Series).
- Communication TCP/IP*1 Wiegand (Input & Output)*1 RS485: ZKTeco RS485*1* Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1
- Standard Functions ADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-pass back, Record Query, Tamper Switch Alarm, Multiple Verification Methods
- Power Supply DC 12V 3A
- Operating Temperature -10°C to 45°C (14°F to 113°F)
- Operating Humidity 10% to 90% RH (Non-condensing)
- Dimensions (L*W*H) 91.93mm * 202.93mm * 21.5mm (L*W*H)
- Gross Weight 1.3 Kg
- Net Weight 0.6 Kg
- Supported Softwares Software: ZKBio CVAccess / ZKBioTalk Mobile App: ZKBio Zlink / ZSmart Cloud Service: ZKBio Zlink
- Installation Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)
- Certifications ISO14001, ISO9001, CE, FCC
