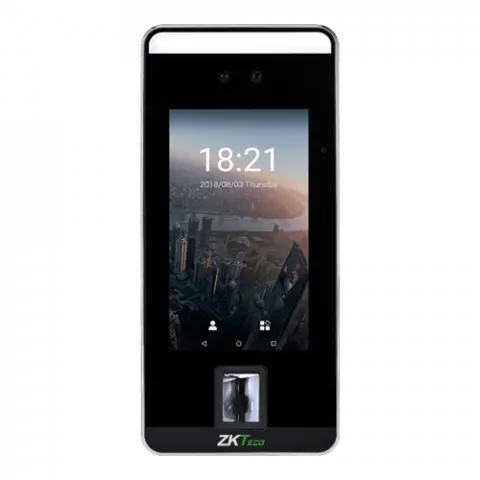

(Time Attendance & Access control machine - (SPEEDFACE-V5L-WIFI
SPEEDFACE-V5L-WIFI
- Model
SpeedFace-V5L; SpeedFace-V5L[TD]; SpeedFace-V5L[TI]
-
Display
5"@ ISP Color LCD Screen (720*1280)
- Camera
WDR Low Light Camera @ 2MP
- Operation System
Linux
- Hardware
CPU: 1.GHz Dual Core
RAM: 1GB; ROM: 8GB
Supplement Light: Yes
Virtual Keypad: 12 Keys
- Fingerprint Sensor: Z-ID
- Authentication Method
SpeedFace-V5L: Face / Fingerprint / Palm (Customized) / Card / Password
(Virtual Keypad)
SpeedFace-V5L[TD]: - Face / Fingerprint / Palm (Customized) / Card / Password
(Virtual Keypad)
SpeedFace-V5L[TI]: Face / Fingerprint / Palm (Customized) / Card / Password (Virtual Keypad)
- Fingerprint Template Capacity
6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)
- Face Template Capacity
6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)
- Palm Template Capacity
【Customized】 3,000 (1:N) (Standard) / 3,000 (1:1)
- Card Capacity
10,000 (1:N) (Optional) / 10,000 (1:1)
- Transaction Capacity
200,000 (1:N) (Optional for Capacity Expansion)
- Biometric Verification Speed
less than 0.3 sec (Fingerprint)
less than 1 sec (Facial Recognition)
less than 0.35 Sec (Palm)
- Touchless Biometric Recognition Distance
1cm to 100cm (Facial Recognition)
Up to 50cm(Palm)
- False Acceptance Rate (FAR) %
FAR ≤ 0.01% ( Visible Light Facial Recognition)
FAR ≤ 0.0001% ( Fingerprint ; ZKFingerprint V10.0)
FAR ≤ 0.05% (ZKPalm V12.0)
- False Rejection Rate (FRR) %
FRR ≤ 0.02% ( Visible Light Facial Recognition)
FRR ≤ 0.01% ( Fingerprint : ZKFingerprint V10.0)
FRR ≤ 1.8% ( ZKPalm V12.0)
- Biometric Algorithm
ZKFace 3.9
ArmaturaPalm (Customized)
ZKFingerprint V10.0
- Card Type
ID Card@125 kHz (Optional)
IC Card@13.56 MHz (Optional)
CEPAS(Optional)
- QR Code
Dynamic or Static QR codes on the ZKBio CVSecurity mobile application. QR code, PDF417, Data Matrix, MicroPDF417 and Aztec scanning in third-party development projects (Support QR500 / 600 Series).
- Communication
TCP/IP*1
Wiegand (Input & Output)*1
RS485: ZKTeco RS485*1*
Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1
Standard Functions
ADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback,
Record Query, Tamper Switch Alarm, Multiple Verification Methods
- Power Supply
DC 12V 3A
- Operating Temperature
-10°C ~ 45°C (14°F ~ 113°F)
- Operating Humidity
10% to 90% RH (Non-condensing)
- Dimensions
91.93mm * 202.93mm * 21.5mm (L*W*H)
- Gross Weight
1.3 Kg
- Net Weight
0.6 Kg
Supported Software
Software: ZKBio CVAccess
Mobile App: ZKBio Zlink / ZSmart
Cloud Service: ZKBio Zlink
- Installation
Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)
- Certifications
ISO14001, ISO9001, CE, FCC
-
